| LD Series |  |
|
Flow Switches
FX Series FM Series FD Series IX Series IM Series SX Series QX Series Level Switches LX Series LM Series LD Series SL Series QL Series Temperature Switches TX Series TM Series |
|
FEATURES
|
|||||||||||
|
OPERATIONS

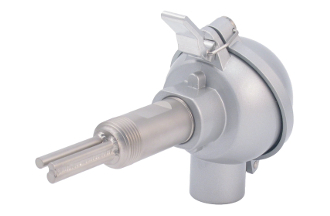

The LM series is designed to provide an extremely reliable level switch at a very cost effective price. This series replaces the standard explosion proof enclosure utilized in our LX series with a NEMA4X enclosure for Outdoor and Wet Applications. The LD series is designed to provide an extremely reliable level switch at a very cost-effective price. This series replaces the standard explosion proof enclosure utilized in our LX series with a NEMA 4X enclosure for outdoor or wet locations. The principle of operation measures the temperature differential between a heated and a reference temperature sensor. The differential varies as the type of product surrounding the sensor changes. This allows the level switch to detect a greater number of different products than any other currently available technology. The field adjustable set-point can be adjusted to detect any two products from air, foam, and hydrocarbons to water. The electronics feature a SPDT relay switch output with power input of 24 VDC. Calibration is easily performed by adjusting a potentiometer on the circuit board. For more information please download a brochure, call us at 1-800-910-6689, or use our part number configurator to Request a Quotation. |
|||||||||||||
APPLICATIONS
|
|||||||||||||
